Name: Outdoor Common Anode 7 Segment Display 1 Digit 4 Inch Seven Segment Display
Brand: KERUN
Price: 1 USD

Brand Name : KERUN

Model Number : KRS-40102AUR-4.8

Certification : RoHS/REACH/MSDS

Place of Origin : Guangdong China

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T

Supply Ability : 5000pcs per day

Delivery Time : 20~25 work days

Packaging Details : Paper box，size：46*34*40（mm）

Luminous Color : Ultra Red

Usage environment : Outdoor

Module Size : 90.0*122.0*15（mm）

PIN quantity : 10PIN

Surface : Black surface and white digit

Electricity : Common anode

Contact Now

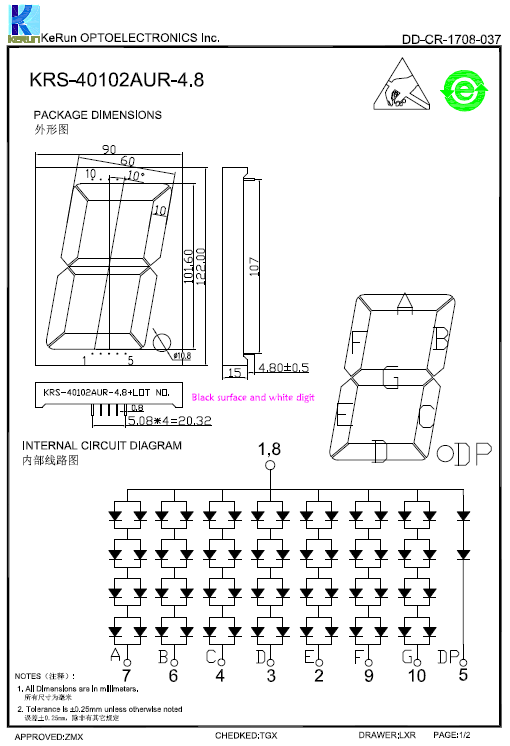

Outdoor Common Anode 7 Segment Display 1 Digit 4 Inch Seven Segment Display

Big Size 4.0inch outdoor usage one digit 7 segment LED module with dot

Specification details

Electrical/Optical Characteristics at Ta=25℃
Parameter	Symbol	Min	Typ	Max	Unit	Condition
Luminous lntensity	Iv	90	--	140	mcd	If=20 mA
Peak Wavelength	λP	-	-	-	nm	If=20 mA
Dominant Wavelength	λd	620	--	635	nm	If=20 mA
Spectral Line Half-Width	△λ	--	30	--	nm	If=20 mA
Forward Voltage	VF	1.6	--	2.5	V	If=20 mA
Reverse Current	IR	-	-	30	μA	VR=6 V

Absolute Maximum Ratings at Ta= 25℃
Parameter	symbol	Maximum rating	unit
Power Dissipation	Pd	50	mW
Forward Current	IF	20	mA
Peak Forward Current	IF(Peak)	80	mA
Reverse Voltage	VR	5	V
Operating Temperature	Topr	-40℃ +80℃
Storage Temperature	Tstg	-40℃ +80℃,RH:25%~65%, within 3 months
Lead Solder Temperature	Tsol	260℃ for 5 seconds
