Mini Ultra Thin 2 Digit 0.3" 7 Segment SMD LED Display

  • 1
  • 2
  • 3

Brand Name : KeRun

Model Number : customized

Certification : ROHS,SGS,REACH

Place of Origin : CHINA

MOQ : Negotiable

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram, L/C

Supply Ability : 10000pcs/day

Delivery Time : 20-25 working days, can negotiate based on order quantity

Packaging Details : Inner package: Thin plastic film surround the products to protect it from scratching and water. Outer package: Internationally standard K3 K5 layers corrugated cartons. Packaging materials: EPE

Name : Ultra Thin Mini Size 2 Digit 0.3" SMD SMT Led 7 Segment Led Display

Digit height : 0.3 Inch

Digit number : 2 digits

Surface Color : Black or Grey color

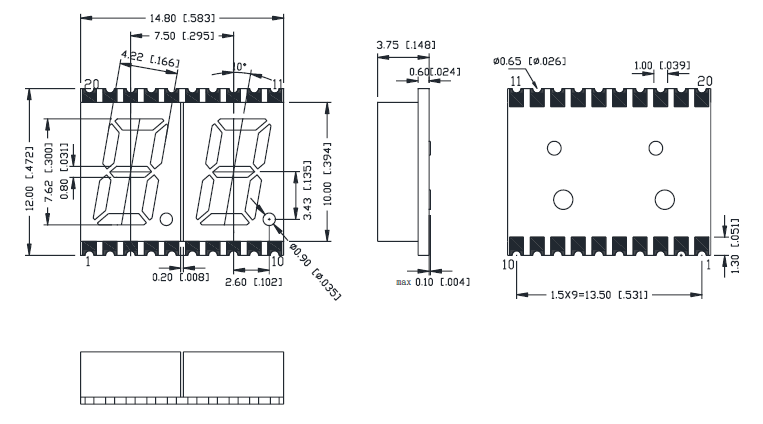

Product Size : 14.8*12 mm

Emitting color : Red

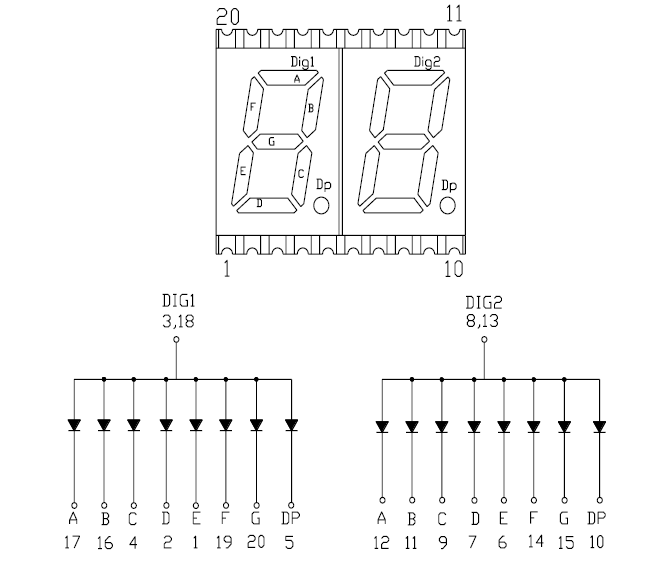

Polarity : Common cathode or anode

Application : Indoor use

Contact Now

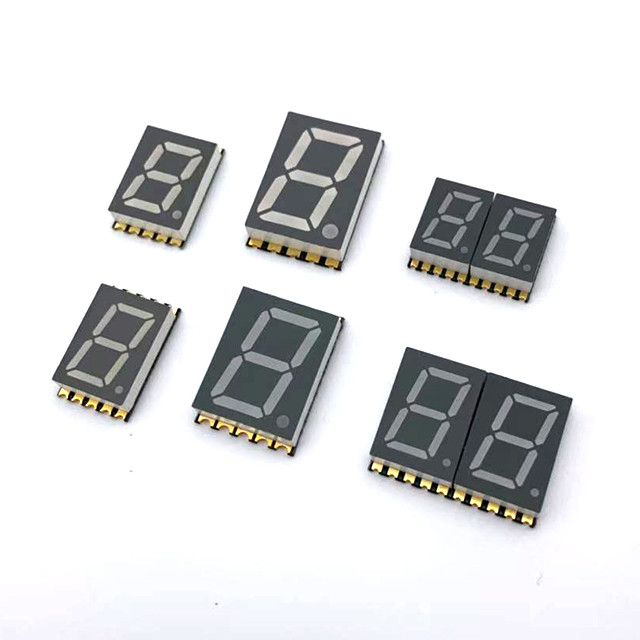

Ultra Thin Mini Size 2 Digit 0.3" SMD SMT Led 7 Segment Led Display

Products features:

1. Extreme short light response time, high brightness, low power, environment friendly and energy saving.

2. Can be driven by low voltage and low current.

3. It is easy to drive and control and therefore is applied widely.

4. Products are packaged in solid state and therefore are stable and have good air tightness.

5. Long life span, usually more than 50 thousands hours

6. For it is universal used, these products can save custom die cost

7. Products displaying different colors could be produced according to customers’ requirements.

Mini Ultra Thin 2 Digit 0.3" 7 Segment SMD LED Display

Mini Ultra Thin 2 Digit 0.3" 7 Segment SMD LED Display


Color:

Led color Blue Green Yellow-Green Yellow Amber Orange Red White
Wave length(nm) 465-475 515-525 565-575 585-595 600-610 620-630 635-650 /
Led chip GaN GaP GaP GaAsP GaAsP GaAsP AlInGaP GaN+Phosphor

Absolute Max Rating (25℃, take yellow-green led as sample):

Symbol Parameter Value Unit
PAD Power Dissipation per segment 60 mW
VR Reverse Volrage per segment 5 V
IAF Continuous Forward Current per segment 25 mA
IPF Peak Forward Vurrent per segment (Duty-0.1, 1KHz) 80 mA
/ Derating Linear from 25℃ per segment 0.33 mA/℃
Topr Operating Temperature Range -35~+85 ℃
Tstg Storage Temperature Range -35~+85 ℃

Mini Ultra Thin 2 Digit 0.3" 7 Segment SMD LED Display
